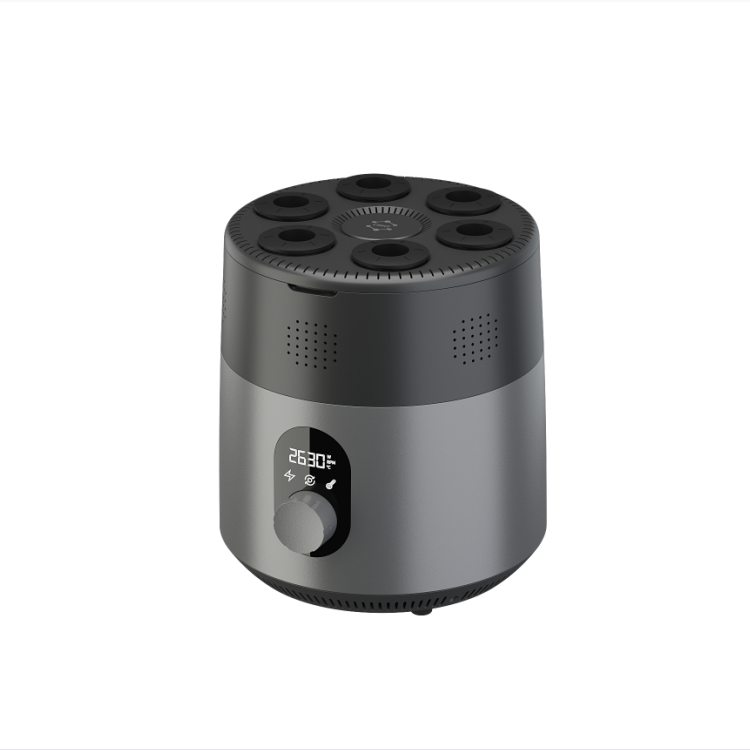

The Shanghai 3S Tech Photocatalytic Reactor AL3 is a high-efficiency experimental device specifically designed for photochemical and photocatalytic research.

Its core functional parameters include: support for a wide-wavelength LED light source ranging from 365 nm to 975 nm, covering the ultraviolet to near-infrared spectrum to precisely match photocatalyst absorption bands; a maximum light intensity of 1,000 mW/cm² and luminous flux of 200,000 LUX, significantly reducing reaction times; an intelligent air-cooling temperature control system with a range of room temperature to 40°C and accuracy ≤ ±0.5°C; independent operation of six test tubes, compatible with NMR tubes and 5–100 mL reaction flasks/tubes for high-throughput screening; and a modular design enabling flexible configuration of light sources, temperature control, stirring, and other components.
