中试生产级光反应解决方案
板式流体 盘管式流体
光流体微反应器F系列
![【光流体微反应器 FG】 【光流体微反应器 FG】](https://cdn.3s-tech.net:8081/sitefiles/library/images/2023/12/65869e671c31df5.jpg)
FQ
微通道:石英/哈氏合金
![【光流体微反应器 FG】 【光流体微反应器 FG】](https://cdn.3s-tech.net:8081/sitefiles/library/images/2023/12/cfb42c61fb80aa7b.jpg)
FG
微通道:玻璃
![【光流体微反应器 FQ】 【光流体微反应器 FQ】](../assets/pdf/92.png)
FP
微通道:聚合物
![【光流体微反应器 FP】 【光流体微反应器 FP】](../assets/pdf/93.png)
FP
微通道:聚合物FEP
![【光流体微反应器 FP】 【光流体微反应器 FP】](../assets/img/products/V6G/pro.png)
型号分类
型号 | FG、FQ、FP |
材质 | 玻璃、石英、聚合物等 |
光波 | 250-975nm可选 |
功率 | 0~2/10/20kW可调(定制) |
持液量 | 20/50/100ML,5/10/50/100L,1t(定制) |
温度范围 | RT/-20~80℃ |
压力范围 | 0~2MPa |
光流体微反应器FQ系列 板式微通道
![【光流体微反应器 FQ】 【光流体微反应器 FQ】](https://cdn.3s-tech.net:8081/sitefiles/library/images/2023/12/65869e671c31df5.jpg)
FQ-18单模组
型号 | FQ-18L(n) / FQ-18H(n) |
LED | 250-975nm 可选 |
透光材料 | 石英 |
接触材质 | 石英-316 L/哈氏合金 |
光源功率 | 400*n W,连续可调 |
持液量 | 18*n mL |
温度范围 | 0~50℃ |
耐压范围 | ≤0.5 MPa |
- 多单元通道自由组合
- 快速实现中试放大
- 石英、哈氏合金可选
![【光流体微反应器 FG】 【光流体微反应器 FG】](https://cdn.3s-tech.net:8081/sitefiles/library/images/2023/6/12e90eabe84623f3.png)
FQ-18(30) 30联组
![【光流体微反应器 FG】 【光流体微反应器 FG】](../assets/pdf/100.png)
![【光流体微反应器 FG】 【光流体微反应器 FG】](../assets/pdf/101.png)
![【光流体微反应器 FG】 【光流体微反应器 FG】](../assets/pdf/102.png)
![【光流体微反应器 FG】 【光流体微反应器 FG】](../assets/pdf/103.png)

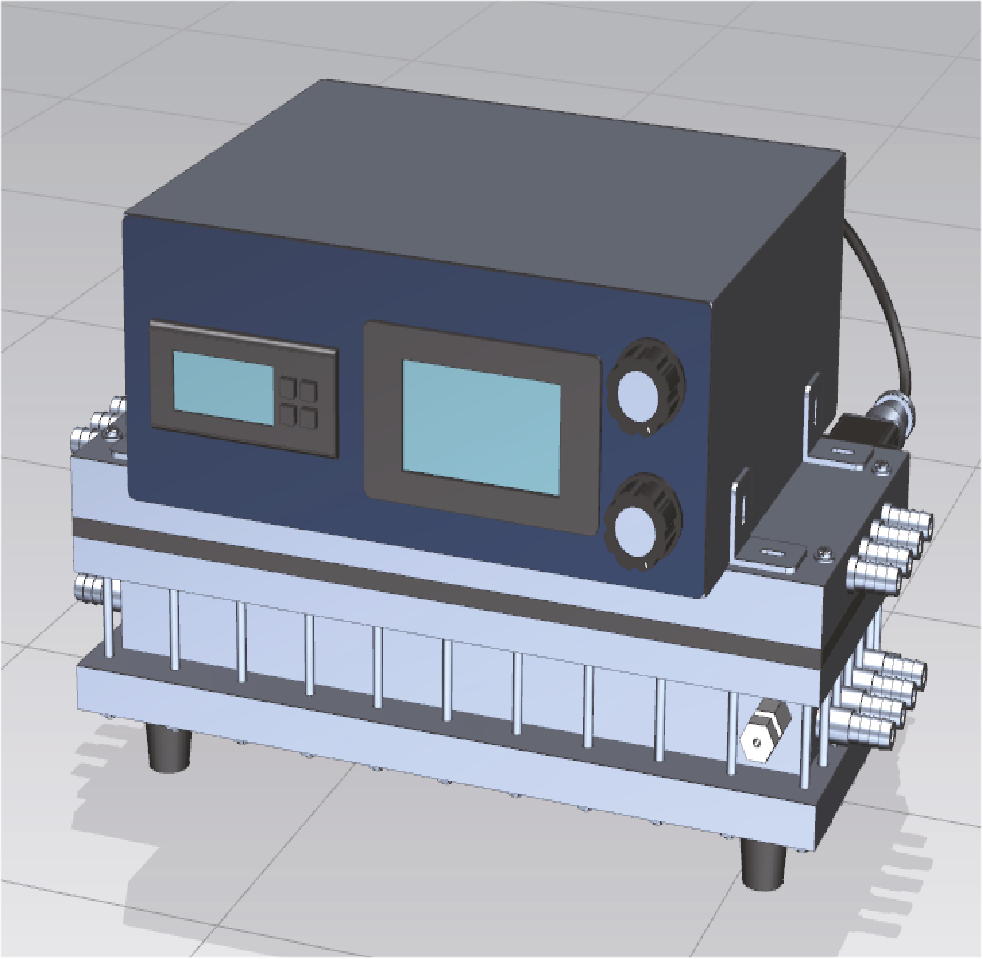

光流体微反应器FG系列 板式微通道
![【光流体微反应器 FG】 【光流体微反应器 FG】](https://cdn.3s-tech.net:8081/sitefiles/library/images/2023/12/cfb42c61fb80aa7b.jpg)
型号 | FG-20(n) / FG-100(n) |
LED | 365-975 nm可选 |
透光材料 | 高硼硅玻璃 |
光源功率 | 400*n W,2000*n W,连续可调 |
持液量 | 20*n mL / 100*n mL |
温度范围 | 0~50℃ |
耐压范围 | ≤1 MPa |
![【光流体微反应器 FG】 【光流体微反应器 FG】](https://cdn.3s-tech.net:8081/sitefiles/library/images/2023/6/3c7d1e56018f74ac.png)
高硼硅玻璃
![【光流体微反应器 FG】 【光流体微反应器 FG】](https://cdn.3s-tech.net:8081/sitefiles/library/images/2023/6/6bbcd14ecfaa9caa.png)
365-975 nm
![【光流体微反应器 FG】 【光流体微反应器 FG】](https://cdn.3s-tech.net:8081/sitefiles/library/images/2023/6/49a6d67490706e10.png)
0~50℃
![【光流体微反应器 FG】 【光流体微反应器 FG】](../assets/pdf/108.png)
- LED灯阵列
- 电功率:1200W
- 光功率MAX=270=mW/cm2
内部LED灯珠阵列点亮测试

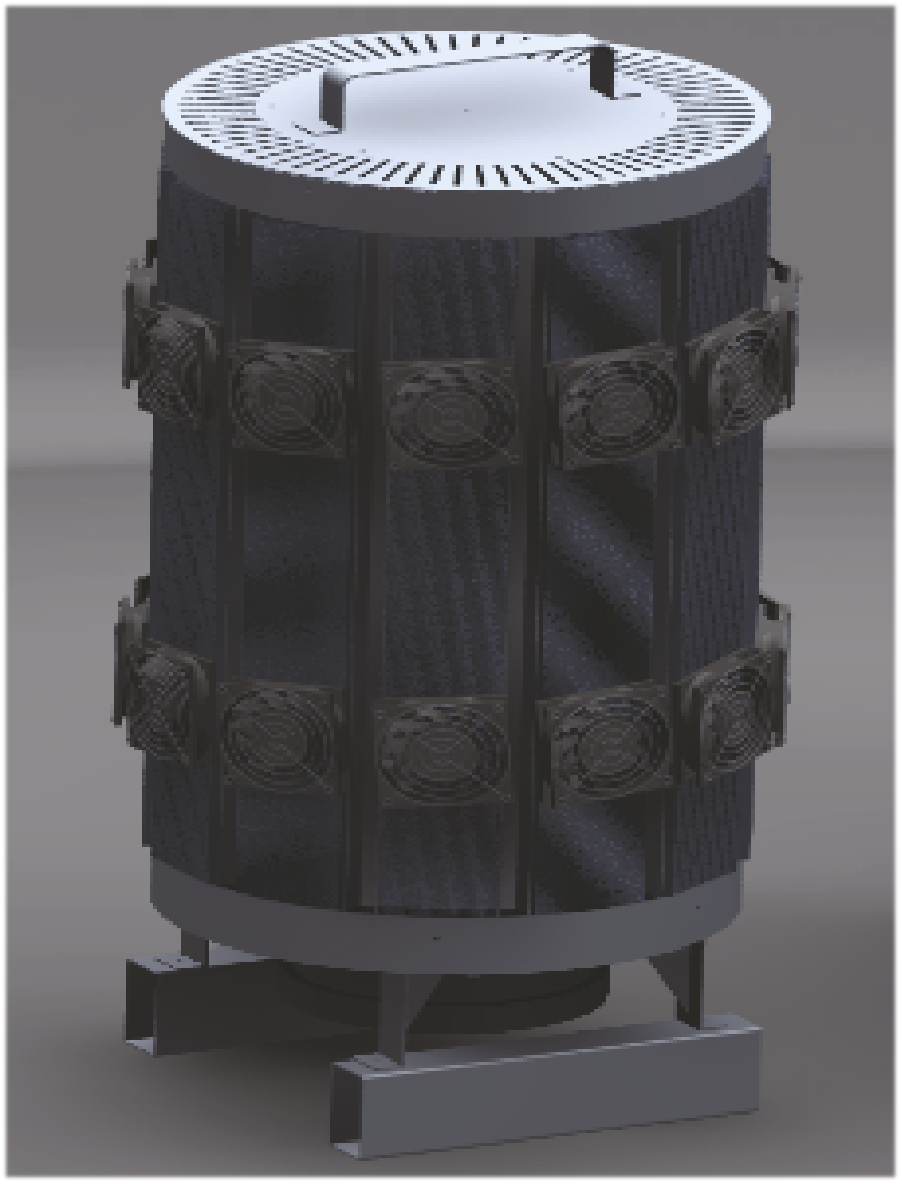

光流体微反应器FP系列 筒式微通道
![【光流体微反应器 FQ】 【光流体微反应器 FQ】](../assets/pdf/109.png)
型号 | FP-500 / 1000 / 4000 mL |
LED波长 | 365-975nm可选 |
透光材料 | 聚合物 |
光源功率 | 1000*n W,连续可调 |
持液量 | 500/ 1000/ 4000 mL |
温度范围 | 控温 / 非控温可选 |
耐压范围 | ≤0.3 MPa |
- 千瓦、万瓦级LED灯阵列
- 峰值光功率≥360mW/cm2
- ≥1000mL储液量/cm2
- 日产出5~30kg产物
![【光流体微反应器 FQ】 【光流体微反应器 FQ】](../assets/pdf/110.png)
整套流式设备解决方案 F系列
- 安全节能
- 光源可换
- 处理量大
![](../assets/img/products/V6G/04.jpg)
![【光流体微反应器 FP】 【光流体微反应器 FP】](../assets/img/products/V6G/05.jpg)
![](../assets/img/products/V6G/06.jpg)
